Same-terminal Application Integration

1. Introduction

The merchant's POS application runs at the same POS terminal. It can pull up checkout component to complete payment through the payment integration APIs of Sadad POS.

---

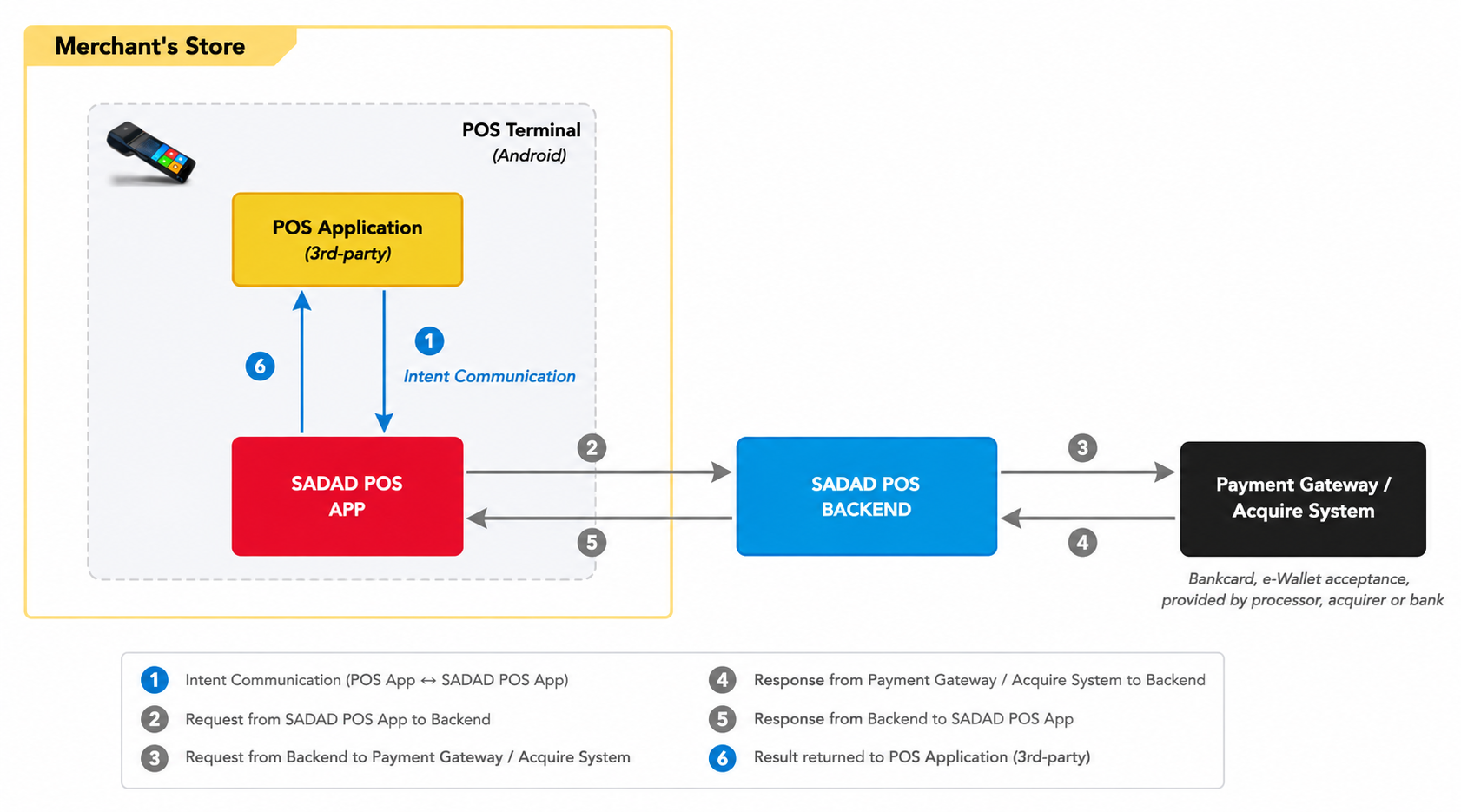

1.1 Typical Process Workflow

1. POS application send order info (include order number, amount) to Sadad POSapp to pull payment checkout component.
2. The checkout component of Sadad POScollects the bank card information/mobile wallet user payment voucher and processes it securely, then merges it and order information in the transaction data, and sends the payment request to Sadad switch.
3. Sadad switchprocesses the transaction packet and sends to payment gateway or acquire system.
4. Payment gateway or acquire system responses result to Sadad switch.
5. Sadad switchresponses transaction result to Sadad POSapplication.
6. Sadad POSapplication returns transaction result to POS application.

1.2 Integration method

POS application uses Android Intent to interact with Sadad POSapplication. The following diagram shows the interactions between these 2 applications.

1. POS application call "startActivityForResult" function to invoke the Sadad POSapplication
2. Sadad POSapplication parse the bundle data from POS application and then process transaction
3. Then Sadad POSapplication call "setResult" function after the transaction and "finish" own Activity
4. POS application received the transaction result by "onActivityResult" event

2. Transaction APIs

Different aspects of each field are defined in this document according to the following conventions.

• M: Required parameters
• C: Required parameters when some conditions are met
• O: Optional parameters
• -: Not Present

2.1 Pre-Init

Pre-initialize the application. This interface can reduce the latency of the first transaction.

Name	Type	Length	Request	Response	Description
version	String	-	M	M	API version, fixed value "A01"
transType	String	-	M	M	The type code of Sale transaction, fixed value PRE-INIT
appId	String	18	M	-	The payment app ID registered in SADAD switch
loginMode	String	-	O	-	"Login" = need login, default value "LoginFree" = login free
userID	String	-	O	-	User ID / Login ID
userPassword	String	-	O	-	User password / Login password
result	String	-	-	M	Refer to Appendix – Transaction Result Code
resultMsg	String	-	-	C	Failure message

2.2 Purchase/Sale

Sale transaction refers to the payment operation performed by the cardholder when purchasing goods or services from a merchant. The transaction amount is deducted from the cardholder's account and transferred to the merchant's account.

Name	Type	Length	Request	Response	Description
version	String	-	M	M	API version, fixed value "A01"
transType	String	-	M	M	The type code of Sale transaction, fixed value SALE
appId	String	18	M	-	The payment app ID registered in SADAD switch
loginMode	String	-	O	-	"Login" = need login, default value "LoginFree" = login free
userID	String	-	O	-	User ID / Login ID
userPassword	String	-	O	-	User password / Login password
transData	JSON	-	M	C	Transaction data object
result	String	-	-	M	Refer to appendix - Transaction Result Code
resultMsg	String	-	-	C	Failure message

transData field

Name	Type	Length	Request	Response	Description
businessOrderNo	String	-	M	M	The order number of the merchant's point of sale application or business system, it must be unique in its system
paymentScenario	String	-	M	M	"CARD" – for Card Payment "SCANQR" – Customers scan a code to pay "BSCANQR" – Customers display QR code to pay "CASH" – for Cash Payment
paymentMethod	String	-	C	-	Specify a Payment method. This field is mandatory only when paymentScenario is set to "3" or "4". Please refer to Payment Method Section
amt	String	12	M	M	Order amount. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
tipAmount	String	12	O	O	Tip amount. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
note	String	128	O	-	The order note information
notifyUrl	String	128	O	-	Service URL for receiving transaction notification webhooks
POSMode	String	1	O	-	1 - Integration mode: Automatically closes the Payment App transaction results page 2 - Standalone mode: Manually close the Payment App transaction results page Default value is 1
onScreenTip	Boolean	-	O	-	Whether or not to enter tips on the Cashier page, default is false
transDate	String	8	-	M	Transaction date, format: YYYYMMDD
transTime	String	6	-	M	Transaction time, format: HHMMSS
operator	String	4	-	O	Operator's work number
authCode	String	6	-	C	Authentication code. This field returns value when card payment transaction
refNo	String	12	-	C	Retrieval Reference Number. This field returns value when card payment transaction
cardNo	String	19	-	C	Card PAN number, masked according to PCI specification. Example: 430277****5723. This field returns value when card payment transaction
entryMode	String	1	-	O	This field returns value when card payment transaction: 1 - Swipe magnetic stripe card 2 - Contact chip card 3 - Contactless chip card 4 - Manual entry input
cardHolderName	String	32	-	O	Cardholder name
transactionID	String	32	-	M	The transaction ID of SADAD switch
cardType	String	1	-	O	Type of bank card: 1 - Debit card 2 - Credit card
vehicleUsage	String	1	O	O	Vehicle usage: 0 - Private 1 - Business
odometerReading	String	6	O	O	Odometer reading. A maximum of 6-digit integer
forecourtData	Array	-	O	-	If the merchant is a gas station, please use this parameter to set specific product information for the gas station. forecourtData is an array, and each element structure can be found in forecourt field. The total sum of forecourtData item amounts must be equal to the order amount amt

forecourt field

Name	Type	Length	Request	Response	Description
code	String	-	M	-	Product Code. Multiple fuel types per transaction are NOT allowed. It is usually a two-digit numeric code, such as 02
quantity	String	-	M	-	Quantity in Litres (3 decimal places). Keep three decimal places, for example: 1.050
amount	String	-	M	-	Amount in cents. An integer in cents, where 1 South African Rand = 100. Its unit is different from amt. Example: 100

2.3 Purchase Refund/Purchase Cancellation

Void transaction usually means that within a short period of time after the transaction has been completed, the merchant needs to cancel the transaction for some reason (e.g., merchant error, customer change of mind, etc.).

• The reversal must usually be done on the same day of the transaction and before the batch settlement.
• Upon successful reversal, the original transaction amount will be refunded to the cardholder's account as if the transaction never occurred.
• A reversal usually requires the original transaction voucher or related information for the operation.

A refund transaction is a process in which a cardholder needs to return an item or cancel a service for some reason (e.g., a problem with the item, dissatisfaction with the service, etc.) after the transaction has cleared and requests that the amount paid be returned to the card account.

• The refund may occur on the same day of the transaction, or a few days or more later.
• Refunds usually require the cardholder to provide proof of purchase and a reason for the refund, and the merchant will refund the appropriate amount to the cardholder's card account after reviewing the refund.

Name	Type	Length	Request	Response	Description
version	String	-	M	M	API version, fixed value "A01"
transType	String	-	M	M	The type code of Void transaction, fixed value REFUND
appId	String	18	M	-	The payment app ID registered in SADAD switch
loginMode	String	-	O	-	"Login" - need login, default value "LoginFree" - login free
userID	String	-	O	-	userID / Login ID
userPassword	String	-	O	-	userPassword / Login password
transData	JSON	-	M	C	Transaction data object
result	String	-	-	M	Refer to appendix - Transaction Result Code
resultMsg	String	-	-	C	Failure message

transData field

Name	Type	Length	Request	Response	Description
originBusinessOrderNo	String	-	M	-	The order number of the original purchase transaction
businessOrderNo	String	-	M	M	The order number of the merchant's point of sale application or business system, it must be unique in its system
amt	String	12	M	M	Order amount. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
paymentScenario	String	-	M	-	"CARD" – for Card Payment "SCANQR" – Customers scan a code to pay "BSCANQR" – Customers display QR code to pay "CASH" – for Cash Payment
refNo	String	12	-	M	Retrieval Reference Number. This field returns value when card payment transaction
originTransDate	String	8	-	-	Original transaction date, format: YYYYMMDD
note	String	128	O	-	The order note information
notifyUrl	String	128	O	-	Service URL for receiving transaction notification webhooks
POSMode	String	1	O	-	1 - Integration mode: Automatically closes the Payment App transaction results page 2 - Standalone mode: Manually close the Payment App transaction results page Default value is 1
paymentMethod	String	-	M	-	Please refer to Payment Method Section
transDate	String	8	-	M	Transaction date, format: YYYYMMDD
transTime	String	6	-	M	Transaction time, format: HHMMSS
operator	String	4	-	O	Operator's work number
authCode	String	6	-	M	Authentication code. This field returns value when card payment transaction
cardIssuer	String	10	-	O	Card issuer name
cardNo	String	19	-	M	Card PAN number, masked according to PCI specification. Example: 430277****5723. This field returns value when card payment transaction
entryMode	String	2	-	O	This field returns value when card payment transaction: 1 - Swipe magnetic stripe card 2 - Contact chip card 3 - Contactless chip card 4 - Manual entry input
tipAmount	String	12	-	O	Tip amount. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
transactionID	String	32	-	M	The transaction ID of SADAD switch

2.4 Pre-auth

Pre-auth transactions are a type of card transaction authorization by which a merchant can ensure that the transaction amount is frozen or held in the customer's account until the transaction is completed.

During the authorization stage, the merchant requests authorization from the customer's bank for a specific amount, which is temporarily frozen if the customer has a sufficient available balance or credit limit in their account. This means that the amount is not actually deducted yet, but the customer cannot use the funds for other purchases during this time.

Authorization is commonly used in those situations where the final transaction amount is uncertain, common in lodging service, rental service, unattended self-service, etc.

Name	Type	Length	Request	Response	Description
version	String	-	M	M	API version, fixed value "A01"
transType	String	-	M	M	The type code of Authorization transaction, fixed value PREAUTH
appId	String	18	M	-	The payment app ID registered in SADAD switch
loginMode	String	-	O	-	"Login" - need login, default value "LoginFree" - login free
userID	String	-	O	-	userID / Login ID
userPassword	String	-	O	-	userPassword / Login password
transData	JSON	-	M	C	Transaction data object
result	String	-	-	M	Refer to appendix - Transaction Result Code
resultMsg	String	-	-	C	Failure message

transData field

Name	Type	Length	Request	Response	Description
businessOrderNo	String	-	M	M	The order number of the merchant's point of sale application or business system, it must be unique in its system
paymentScenario	String	-	M	-	"CARD" – for Card Payment
amt	String	12	M	M	Order amount. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
note	String	128	O	-	The order note information
notifyUrl	String	128	O	-	Service URL for receiving transaction notification webhooks
POSMode	String	1	O	-	1 - Integration mode: Automatically closes the Payment App transaction results page 2 - Standalone mode: Manually close the Payment App transaction results page Default value is 1
paymentMethod	String	-	M	-	Please refer to Payment Method Section
transDate	String	8	-	M	Transaction date, format: YYYYMMDD
transTime	String	6	-	M	Transaction time, format: HHMMSS
operator	String	4	-	O	Operator's work number
authCode	String	6	-	M	Authentication code. This field returns value when card payment transaction
cardHolderName	String	32	-	O	Cardholder name
refNo	String	12	-	M	Retrieval Reference Number. This field returns value when card payment transaction
cardNo	String	19	-	M	Card PAN number, masked according to PCI specification. Example: 430277****5723. This field returns value when card payment transaction
entryMode	String	2	-	O	This field returns value when card payment transaction: 1 - Swipe magnetic stripe card 2 - Contact chip card 3 - Contactless chip card 4 - Manual entry input
tipAmount	String	12	-	O	Tip amount. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
cardType	String	1	-	O	Type of bank card: 1 - Debit card 2 - Credit card

2.5 Pre-auth Completion

Completion transaction is the process of requesting the merchant to formally debit the customer's account for the previously authorized amount after the authorization, when the actual consumption of the service or goods is complete and the final amount is determined. This step is a follow-up to the authorization and ensures that the merchant receives the payment.

For example, when a customer checks out of a hotel at the end of their stay, the hotel will compare the previously authorized amount to the actual amount spent; if the actual amount spent is higher, the hotel will request an additional authorization to cover the difference; if the actual amount spent is lower, only the actual amount spent will be deducted, and the remainder of the authorized amount will be released back to the customer's account.

Name	Type	Length	Request	Response	Description
version	String	-	M	M	API version, fixed value "A01"
transType	String	-	M	M	The type code of Authorization Completion transaction, fixed value PREAUTHCOMPLETE
appId	String	18	M	-	The payment app ID registered in SADAD switch
loginMode	String	-	O	-	"Login" - need login, default value "LoginFree" - login free
userID	String	-	O	-	userID / Login ID
userPassword	String	-	O	-	userPassword / Login password
transData	JSON	-	M	C	Transaction data object
result	String	-	-	M	Refer to appendix - Transaction Result Code
resultMsg	String	-	-	C	Failure message

transData field

Name	Type	Length	Request	Response	Description
originBusinessOrderNo	String	12	M	-	The order number of the original purchase transaction
businessOrderNo	String	-	M	M	The order number of the merchant's point of sale application or business system, it must be unique in its system
paymentScenario	String	-	M	-	"CARD" – for Card Payment
amt	String	12	M	M	Authorization confirmation amount. The final payment amount and any excess authorized amount will be refunded to the customer's account. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
authCode	String	6	-	M	Authentication code. This field returns value when card payment transaction
note	String	128	O	-	The order note information
notifyUrl	String	128	O	-	Service URL for receiving transaction notification webhooks
POSMode	String	1	O	-	1 - Integration mode: Automatically closes the Payment App transaction results page 2 - Standalone mode: Manually close the Payment App transaction results page Default value is 1
paymentMethod	String	-	M	-	Please refer to Payment Method Section
transDate	String	8	-	M	Transaction date, format: YYYYMMDD
transTime	String	6	-	M	Transaction time, format: HHMMSS
operator	String	4	-	O	Operator's work number
refNo	String	12	-	M	Retrieval Reference Number. This field returns value when card payment transaction
cardNo	String	19	-	M	Card PAN number, masked according to PCI specification. Example: 430277****5723. This field returns value when card payment transaction
entryMode	String	2	-	O	This field returns value when card payment transaction: 1 - Swipe magnetic stripe card 2 - Contact chip card 3 - Contactless chip card 4 - Manual entry input
cardIssuer	String	10	-	O	Card issuer name
tipAmount	String	12	-	O	Tip amount. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents

2.6 Pre-auth Cancellation

When the pre-authorization transaction is canceled, the frozen funds will be returned to the cardholder's account.

Name	Type	Length	Request	Response	Description
version	String	-	M	M	API version, fixed value "A01"
transType	String	-	M	M	The type code of Authorization Completion transaction, fixed value PREAUTHCANCEL
appId	String	18	M	-	The payment app ID registered in SADAD switch
loginMode	String	-	O	-	"Login" - need login, default value "LoginFree" - login free
userID	String	-	O	-	userID / Login ID
userPassword	String	-	O	-	userPassword / Login password
transData	JSON	-	M	C	Transaction data object
result	String	-	-	M	Refer to appendix Transaction Result Code
resultMsg	String	-	-	C	Failure message

transData field

Name	Type	Length	Request	Response	Description
originBusinessOrderNo	String	12	M	-	The order number of the original purchase transaction
businessOrderNo	String	-	M	M	The order number of the merchant's point of sale application or business system, it must be unique in its system
paymentScenario	String	-	M	-	"CARD" – for Card Payment
amt	String	12	M	M	Authorization confirmation amount, final payment amount, and any excess amount during authorization will be refunded to the customer's account. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
authCode	String	6	-	M	Authentication code. This field returns value when card payment transaction
notifyUrl	String	128	O	-	Service URL for receiving transaction notification webhooks
POSMode	String	1	O	-	1 - Integration mode: Automatically closes the Payment App transaction results page 2 - Standalone mode: Manually close the Payment App transaction results page Default value is 1
paymentMethod	String	-	M	-	Please refer to Payment Method Section
transDate	String	8	-	M	Transaction date, format: YYYYMMDD
transTime	String	6	-	M	Transaction time, format: HHMMSS
operator	String	4	-	O	Operator's work number
refNo	String	12	-	M	Retrieval Reference Number. This field returns value when card payment transaction
cardNo	String	19	-	M	Card PAN number, masked according to PCI specification. Example: 430277****5723. This field returns value when card payment transaction
entryMode	String	2	-	O	This field returns value when card payment transaction: 1 - Swipe magnetic stripe card 2 - Contact chip card 3 - Contactless chip card 4 - Manual entry input
cardIssuer	String	10	-	O	Card issuer name
tipAmount	String	12	-	O	Tip amount. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
version	String	-	M	M	API version, fixed value "A01"

2.7 Query

Query details of a specified transaction

Name	Type	Length	Request	Response	Description
version	String	-	M	M	API version, fixed value "A01"
transType	String	-	M	M	The type code of Query transaction, fixed value QUERY
appId	String	18	M	-	The payment app ID provided by SADAD switch
transData	JSON	-	M	C	Transaction data object
result	String	-	M	Refer to appendix – Transaction Result code
resultMsg	String	-	C	Failure message

transData field

Name	Type	Length	Request	Response	Description
businessOrderNo	String	-	M	M	The order number of the merchant's point of sale application or business system, it must be unique in its system
amt	String	12	-	M	Order amount. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
transDate	String	8	-	M	Transaction date, format: YYYYMMDD
transTime	String	6	-	M	Transaction time, format: HHMMSS
operator	String	4	-	O	Operator's work number
authCode	String	6	-	C	Authentication code. This field returns value when card payment transaction
refNo	String	12	-	C	Retrieval Reference Number. This field returns value when card payment transaction
cardNo	String	19	-	C	Card PAN number, masked according to PCI specification. Example: 430277****5723. This field returns value when card payment transaction
entryMode	String	2	-	O	This field returns value when card payment transaction: 1 - Swipe magnetic stripe card 2 - Contact chip card 3 - Contactless chip card 4 - Manual entry input
tipAmount	String	12	-	O	Tip amount. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
cashAmount	String	12	-	O	Cash amount. Unit in the smallest denomination of the currency (cents), for example, 1 USD = 100 cents, 1 ZAR = 100 cents, 1 NAD = 100 cents
cardIssuerName	String	10	-	O	Card issuer name
cardIssuerID	String	2	-	O	Card issuer ID
cardHolderName	String	32	-	O	Cardholder name

2.8 Print

Reprint the specified transaction. It will be marked "Reprint" in the receipt.

Name	Type	Length	Request	Response	Description
version	String	-	M	M	API version, fixed value "A01"
transType	String	-	M	M	The type code of Reprint transaction, fixed value PRINT
appId	String	18	M	-	The payment app ID registered in SADAD switch
transData	JSON	-	M	C	Transaction data object
result	String	-	-	M	Refer to appendix - Transaction Result Code
resultMsg	String	-	-	C	Failure message

transData field

Name	Type	Length	Request	Response	Description
businessOrderNo	String	-	M	-	The order number of the merchant's point of sale application or business system, it must be unique in its system

3. Sample Code

Intent intent = new Intent();
intent.setAction("com.wiseasy.transaction.call");
intent.putExtra("version", "A01");
intent.putExtra("appId", "yourappid");
intent.putExtra("transType", "SALE");
JSONObject jsonObject = new JSONObject();
try {
    jsonObject.put("businessOrderNo","202202222222");
    jsonObject.put("paymentScenario","CARD");
    jsonObject.put("amt","000000001000");
    intent.putExtra("transData", jsonObject.toString());
} catch (JSONException e) {
    e.printStackTrace();
}
startActivityForResult(intent, 1);
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
    String result = data.getStringExtra("result");
    String resultMsg =
    data.getStringExtra("resultMsg"); String transData
    = data.getStringExtra("transData"); if
    (result.equals("00")){
        try {
            JSONObject jsonObject = new
            JSONObject(transData); String amount =
            jsonObject.getString("amt");
        }catch(JSONException e){
            e.printStackTrace();
        }
    }
}

4. Appendix

4.1 Transaction result code

Category	Result Code	Description
Sucess	00	Transaction approved
Terminal kernel exception	A003	There is no EMV application in card
	A008	Transaction has been rejected
	A036	2 GAC Failed
	A040	Init SDK failed
	C000	Read card exception
	C001	Swipe card failed
	C006	Card conflict
	C008	IC card not allow swipe first
	C009	Read card timeout
	C011	Track key not found
	C014	Mag-stripe mode contactless transaction not supported
	G000	PinPad exception
	G003	Enter pin canceled
	G004	Enter pin timeout
	G005	Enter pin failed
	G006	Online PIN payments cannot be made without a key in device
Package exception	H010	Mac Error
	H011	Signature verification fails
Network exception	J000	Network exception
	J001	Can't find host
	J002	Network connection timeout
	J003	Network connect failed
	J004	Send data failed
	J005	Read data failed
	J006	Read data timeout
Transaction exception	K018	Use the same card as the original transaction
	K019	No data to be settled
	K026	Manual cancelation by operator
	K027	Transaction timeout
	K029	Low battery!
	K036	Auto Reversal Successful
	K037	Auto Reversal Failed
	K039	Cash back amount exceeds the limit.
Third app invoking exception	M002	Parameter error
	M003	Invalid Amount
	M007	This function is not supported now
	M008	The invoke version is incorrect
	M009	Invalid application invoke
	M010	Can`t find original transaction
	M011	The original transaction cannot be void
	M012	The original transaction cannot be canceled. Please ensure that: The original transaction is a pre-auth complete transaction; The original transaction has been completed; The original transaction time is today; The original transaction has not been cenceled
	M013	The original transaction cannot be refund
	M016	Duplicate merchant order number
	M017	Merchant does not support unreferenced refund
	M018	Forecourt parameter is required
Server exception	N002	Sadad switchservice request exception
	N003	Acquire service request exception
User exception	P001	Incorrect account or password, please try again
	P002	The account is locked and cannot be logged in
Init exception	Q001	System time error, please connect the network to get the time automatically!
	Q002	AID is not configured
	Q004	MerchantId or TerminalId is not configured
	Q007	The merchant parameter configuration is incorrect
	Q008	Get Key Info failed
Other exception	Z000	Exception occurred. Further investigation required by technical support
